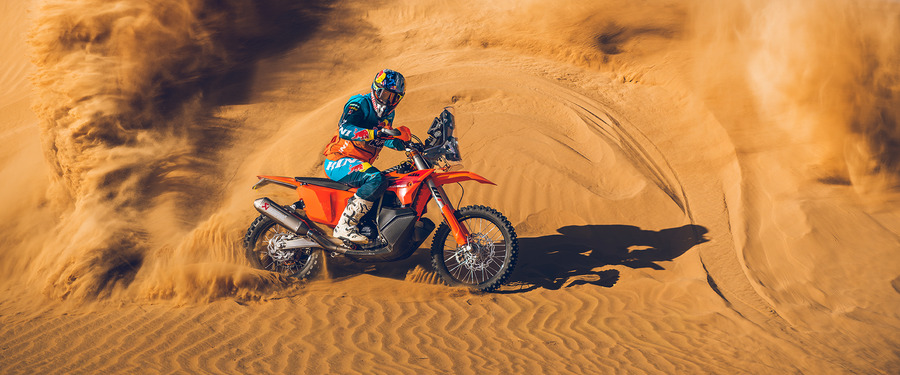

Ktm 2027 KTM 450 RALLY REPLICA 2027DOMINATE THE DUNES

DescriptionSpecifications

We can say it; the KTM 450 RALLY REPLICA is the most sucssefull machine ever to line up at the Dakar Rally. Not only has it graced the top step at the > Read more

Adjustability

At this level, pin-point accuracy in your setup is essential to gaining an edge on the competition. Good thing then, that the KTM 450 RALLY REPLICA has that covered, with fully adjustable WP Pro Components suspension which can be fine-tuned to the likes and weights of riders and all kinds of varying terrains, as well as adjustable handlebars.

Digital Roadbook

Already compulsory at many races for the Car, SSV, and Truck categories, the KTM 450 RALLY REPLICA has provisions to allow for the fitment of a digital roadbook. Not only has this new addition undergone many racing kilometers of hard testing, but it is also more accurate, more user-friendly, and brings more functionality to the racing stage.

LED Headlight

A LED headlight system is incorporated into the front mask of the KTM 450 RALLY REPLICA, with an overall light output increase of 33%. Not only does this light the way to the bivouac on those longer stages, but also plays a vital role in the early morning starts and misty weather conditions.

Engine Management System

The EMS and 44 mm throttle body are supplied by Keihin, and have proven to be the best combination for the KTM 450 RALLY REPLICA and feature rally-specific ECU mappings to the airbox, engine, and exhaust combination.

Engine

The powerplant responsible for 11 Dakar victories is based on the hugely successful KTM SOHC 450 cc 4-stroke engine. Engineered with long, hard, and fast rally stages in mind, it features more efficient performance throughout the rev range. For 2026, it is fitted with a newly designed SOHC cylinder head, with a reinforced clutch and gearbox, and the latest electronic fuel injection. The result is unrivaled power, speed, and outstanding reliability.

Cylinder Head

A reworked SOHC cylinder head features shaped ports for further improved performance. The single overhead camshaft activates four ultra-lightweight titanium valves via extremely rigid, DLC coated rocker arms for maximum reliability.

Radiator

The KTM 450 RALLY REPLICA debuts a radiator concept. Featuring two independent radiators instead of one, it dramatically improves cooling efficiency. There is also the added benefit of having a backup radiator should one get damaged.

Akrapovič Exhaust

Fitted with a rally-specific titanium Akrapovič exhaust system as standard, the KTM 450 RALLY REPLICA is ready to roar - with tuning to match. It has a special hydro-formed section on the bottom for maximum ground clearance and boasts ultra-lightweight construction and unmatched performance.

Triple Clamps

An 23 mm offset CNC machined triple clamps with a rally-specific design ensures optimal stiffness and precise handling when charging through the desert. This, together with an in-house developed PHDS system and the proven SCOTT's steering damper, provides the confidence to keep it pinned in the faster, flowing rally stages.

Bodywork

Sharper, sleeker, and ready to take on the roughest rally stages, the KTM 450 RALLY REPLICA has undergone a complete refresh. Redesigned fairings, tank layout, and a rally-specific seat provide improved ergonomics and seat comfort over longer distances. This means enhanced rider ergonomics, allowing for perfect control when standing by providing ample grip surfaces and freedom of movement.

Navigation Tower

A navigation tower made of extra-light carbon fiber is well-protected behind the fairing with a, narrower dashboard. This brings significantly improved aerodynamics, reduced turbulence, and less stress for the rider when blasting across the landscape at maximum speed. Warning lights are now also fully integrated and illuminate when the front or rear tank reserve is activated.

Fuel Tanks

The KTM 450 RALLY REPLICA boasts a total fuel volume of 35 liters. It has two separate 9-liter fuel tanks upfront and a self-supporting 16-liter fuel tank at the rear. These are controlled by two separate fuel pumps, which can be independently accessed and activated to supply fuel from either the front or the rear fuel tank. This works as a backup system and an additional means to monitor fuel levels.

Frame

A hydro-formed, laser-cut, and hand-welded frame forms the backbone of the KTM 450 RALLY REPLICA. Constructed with precisely calculated parameters of longitudinal and torsional flex, the frame provides exceptional rider feedback, energy absorption, and straight-line stability - all of which are crucial for rally racing. To achieve this, the rotating mass, forged steering head connection, and most of the frame tubes have been completely re-positioned., along with the tube wall thickness, for maximum reliability and specific rigidity in high-stress areas. The frame is finished with a long-lasting and eye-catching powder coating, while the rear self-supporting 16-liter fuel tank doubles as the subframe.

Swingarm

A hollow, die-cast aluminum swingarm is designed for optimal stiffness and reliability at the lowest possible weight. The topology has also been optimized for optimal rigidity. This works together with a proven linkage system and fully adjustable shock absorber, which gives the rider confidence to go flat out. This also means maximum traction when accelerating and bottoming-out resistance for better stability and safety.

Suspension

The KTM 450 RALLY REPLICA is fitted with the latest WP PRO COMPONENTS at both ends. In front, a 48 mm WP XACT PRO 7548 closed cartridge fork featuring sophisticated Cone Valve technology shines with outstanding damping performance. A fully adjustable WP XACT PRO 7750 shock takes care of the business in the rear. The suspension components provide full adjustability, improved damping, and higher bottoming reserves for ultimate stability.

E-starter and Battery

A reliable electric starter and lightweight Li-Ion 4.5 Ah battery handle start procedures on the KTM 450 RALLY REPLICA. Weighing substantially less than a conventional lead battery, the Li-Ion battery delivers reliable power to the electronics, as well as enuring the convenience of easy starting particularly at low temperatures.

Tool Kit Space

The KTM 450 RALLY REPLICA features a fully integrated and well-thought-out tool storage solution, with an engine cover integrated space for essential tools. This means racers can rest assured that they have what they need out in the dunes should the worst-case scenario occur while freeing up space in your bumbag.

Wheels

Black high-strength alloy rims from EXCEL are coupled to cast aluminum hubs using lightweight spokes and steel nipples for maximum stability and durability. This combination has proven to be the best solution for intense rally racing across all terrain types.

Brakes

Brembo components guarantee total performance and reliability in braking. 300 mm front and 240 mm rear discs deliver superior stopping power, rider feel, and overall control, instilling maximum confidence in any condition.

WINNER OF 2026 DAKAR RALLY

Winning Dakar is not like winning any ordinary race. It is the ultimate test of rider and machine, forged together at the limit for 15 relentless days and more than 8000 brutal kilometers. Every KTM ADVENTURE motorcycle is born from this battlefield, directly derived from the KTM 450 RALLY factory race machine. The lessons learned, the durability proven, and the performance earned at Dakar live on in every KTM ADVENTURE model. This icon marks the absolute speed, total resilience, and uncompromising reliability of your motorcycle, exactly where KTM thrives. To read more about our Red Bull KTM Factory Racing team click here.

Premium Manufacturer's Warranty

This motorcycle comes with a Premium Manufacturer's Warranty. Riders enjoy up to 1 year of coverage and experience the thrill of offroad riding with added peace of mind. To keep the warranty valid, always follow the guidelines outlined in your motorcycle's Owner's Manual, including using the bike as intended and completing all scheduled services at an authorized KTM dealer. The standard manufacturer's warranty conditions, as specified in the delivery certificate, also remain applicable. More information and details on how to benefit from this offer can be found on the KTM warranty page. Valid from Model Year 2027 onwards for all offroad motorcycles as well as the 450 SMR.

View More Info on KTM Website

Engine
Design	1-cylinder, 4-stroke engine
Displacement	449.3 cm³
Transmission	6-speed
Cooling	Liquid cooled
Engine cylinder	Single cylinder
Engine addition	4 V / SOHC
EMS	Kokusan
Engine oil manufacturer	Motorex
Engine stroke	4-Stroke
Drive type	Combustion
Chassis
Front brake disc diameter	300 mm
Front brake disc diameter	11.81 inch
Rear brake disc diameter	240 mm
Rear brake disc diameter	9.45 inch
Chain	5/8 x 1/4"
Frame material	Chrome-molybdenum steel
Subframe tank	Self supporting fuel tank
Rear subframe design	Self-supporting plastic tank
Suspension
Suspension travel (front)	304 mm
Suspension travel (rear)	280 mm
Suspension travel (front)	11.97 inch
Suspension travel (rear)	11.02 inch
Front suspension type	WP XACT
Rear suspension type	WP Shock absorber
Dimensions
Tank capacity (approx.)	35 l
Subframe tank	Self supporting fuel tank
Tank capacity (approx.)	9.25 US gal
Wheels	Spoked wheels with aluminium rims

View Specs on KTM Website
