Ktm 2026 KTM 990 RC R Track 2026NEVER STOP RACING

DescriptionSpecifications

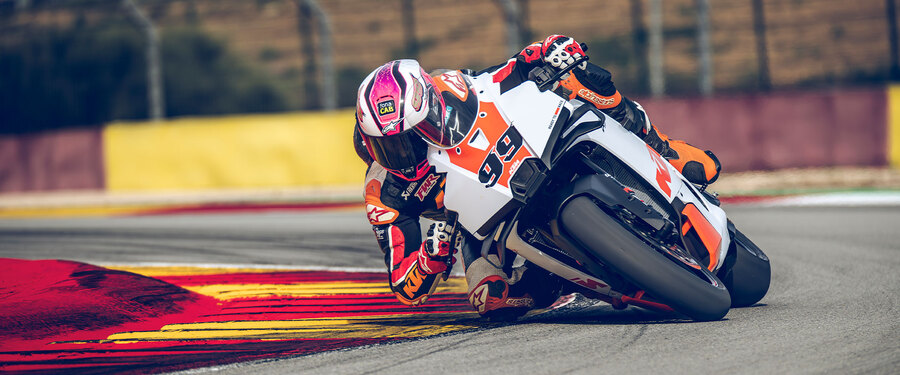

Born from racing genes found in the MotoGP KTM RC16, comes the KTM 990 RC R TRACK. All that READY TO RACE energy and knowledge as well as KTM's NEVER STOP > Read more

ADJUSTMENTS FOR THE TRACK

A pure-bred Supersport motorcycle (non-homologated for the street) is waiting for the circuit. Lights, mirrors, side-stand and other street requirements are gone replaced by a high value - but also entry-level friendly - race-ready configuration with low maintenance, easy to repair and detailed dealer support. Protectors for brake lever and the rear aluminum sprocket, quick release fuel cap, wet weather taillight, swingarm paddock bobbins and a paddock stand supplied as standard are more evidence of the KTM 990 RC R TRACK's primary purpose. The injected plastic race-ready fairing and bodywork is designed to allow the appliance of personal decals and graphics.

RACE COCKPIT

The KTM 990 RC R TRACK employs a 4.2" landscape TFT dash for prime track usability and efficient use of space. The unit has anti-glare, anti-fingerprint and anti-reflex coatings for the optically bonded screen with a 65000-color capability. The TFT will show status of three TRACK RIDE Modes, whether the Pit Limiter has been engaged and the operation of the Quickshifter+. Engine brake configuration and all the options provided through the standard inlcuded TRACK PACK are beamed through the innovative display layout and interactive experience. Clarity and functionality are premium attributes.

RACE READY CONTROLS

The handlebar layout and switchcube system of the KTM 990 RC R TRACK prioritizes simplicity but this does not mean the equipment and the design-thinking is any less advanced. The shape and touch of the block is slim and compact for quick operation (with haptic feedback for selection confirmation). Riders can swiftly navigate through the menu options they might need before or even during a circuit session. The cockpit area also features a kill switch, pit limiter (60 km/h) and altered controls for lap timer and slip adjuster. The high beam and horn buttons have vanished, and the ignition button replaces the key lock system. The zone is as intuitive as possible.

BODYWORK

MotoGP anyone? The KTM 990 RC R TRACK's form and design is unmistakable. The fairing and aerodynamic profile stems from the lessons learned in Grand Prix for the effects of airflow, downforce and stability and to all the associated benefits for grip and stability. The KTM 990 RC R TRACK has an injected plastic fairing as a more practical solution for swapping-out any crash-damaged sections with a perfect fit every time. New tooling around the belly pan and seat increase security and integration. The windscreen bubble is 2.5 cm higher than the KTM 990 RC R to enable a more comfortable and frequent tuck position.

Engine

Building on the KTM 990 RC R's EU 5+, 947 cc, parallel twin DOHC LC8c motor, the TRACK version has boosted numbers to befit its racier status. The stats come in at 135 PS (99.3 kW) and 105 Nm of torque at 7000 rpm from an engine that already makes the KTM 990 RC R range one of the most compact packages on the market and one of the best for power-to-weight. A key component of the performance comes through the full Akrapovic Evolution line exhaust, kitted in stainless steel and weighing just 3 kg which hones the 98.2 dB output further. The system permits a five-level engine brake configuration. Straights will feel even shorter, especially with the racing gearbox providing a longer shift from first and a shorter sixth.

TRACK MODES

The KTM 990 RC R TRACK has three customizable RIDE Modes with Track 1, Track 2 and Track 3 labels. Riders can set-up their bike to harness the most of their tires, power and fuel and for the varying demands of the track session and then easily change between them. Within the modes are possibilities for: Throttle Response (Smooth, Linear, Aggressive), Motorcycle Traction Control Slip adjustment (0-9), six levels of Anti Wheelie Mode (from Very Low to Very High to Off), Launch Control and Engine Brake. For more detailed information on these provisions then consult the KTM TECH BIBLE.

ELECTRONIC BUZZ

The racetrack is no home for ABS or Cruise Control but the 6D IMU (inertia measurement unit) helps for the lean angle sensor and therefore engageable Motorcycle Traction Control, the Quickshifter+ and other RIDE Modes that can enhance performance potential. The Connectivity Unit (no phone calls necessary during a rapid qualifier!) has been withdrawn and the wiring harness simplified. As a result, the whole electronics system weighs two kilos less than the KTM 990 RC R.

Ergonomics

Getting to the point to allow you to the point of the apex. The KTM 990 RC R TRACK's ergonomics have been 'sharpened' with a flatter, angled seat, optimum contact surfaces and adjustable footpegs. The 15.7 l tank has been sculpted through repeated tests and feedback from elite racers and to maximize the possibilities of the '6 contact points'. The rider can pivot around the motorcycle to exert control through legs, knees and arms, and scythe through the tightest network of corners at will. The redesigned, machined, black aluminum clip-on handlebars are fixed 10 mm lower on the triple clamp and 3 degrees downwards. Count on adjustable levers (+ or - 6 degrees) while the footpegs have been moved 25 mm up and can adjust higher through 6 different settings. The gear shifter can be reversed with a simple change of the screw connection point.

Seat

More MotoGP genes can be spotted through the KTM 990 RC R TRACK's flatter seat and the formation with the fairing and Supersport aesthetic. The race bike is better integrated with the plastic fairing thanks to rounder surfaces and redefined edges to permit the rider to dart around the motorcycle with assured urgency and increased freedom. Ergonomics have been tweaked for the primary role of positioning for speed. The seat height has crept up to 857 mm to suit this 'attack' poise.

Chassis

The KTM 990 RC R TRACK's chassis geometry is fixed accordingly with an emphasis of 52.5% to 47.5% front/rear weight distribution. The offset is measured at 33 mm with a steering angle at 25 degrees for improved steering sensation and a planted front end. The aluminum diecast swingarm - with a minimalistic linkage swingarm construction mechanism - brings increased flex for increased stability, and manageability across track bumps for this 170 kg (dry weight) rocket. An adjustable steering damper is also mounted for peak control through the quickest racing lines.

FORKS

Confidence and belief in the front end is the basis for commitment to any curve. Rising to the task is a 48 mm WP APEX Open Cartridge upside-down fork. The unit has been modified based on many testing laps around some of the most prominent motorsport circuits in Europe. No compromise has been made in the search of the best track capability of the hardware. Each fork is surrounded by freshly designed 33 mm black anodized triple clamps for high-performance maneuvers. The forks are fully adjustable, with 30 clicks for both compression and rebound and 6 mm of preload. A full set of WP PRO COMPONENTS are available for the rider who needs those extra tenths when chaing lap times.

Rear Shock

The KTM 990 RC R TRACK edition uses a WP APEX linear spring shock to complement the fork and provide state of the art suspension and more customization potential. High and low speed compression can be tweaked, as well as rebound and preload for the ideal sensation, stiffness and feeling through the geometry of the front end. The linear spring harmonizes with the progression curve of the linkage construction for the best possible feedback. The 'but' comes with the settings of the KTM 990 RC R TRACK: as with the WP APEX forks, the shock has been tuned for the best performance on racing asphalt. More focused, and less pliant to the inconsistencies riders would normally find on public streets.

Wheels and Tires

The KTM 990 RC R TRACK is ready to smoke rubber, and the invitation is obvious thanks to the sight of gleaming Michelin Power Slick 2 tires. These are great track day tires with a very fast heat up period leaving you to not always rush to get those tyre warmers fitted. The KTM 990 RC R TRACK has wheels and rims specified for the track: 120/70-R17 on the front with 190/55-R17 on the rear.

Brakes

How big is your dime? The KTM 990 RC R TRACK's set-up will haul the fast-show to a razor point stop. The hardware is courtesy of industry-leaders Brembo with their HyPure equipment. The calipers are the next generation of the 4-piston engineering, meaning a more linear feel, a constant pressure point, less lever pull, and better modulation. The system surrounds two highly resilient 320 mm Brembo discs and a single piston unit will grab a 240 mm Galfer rear disc. Importantly, by removing the ABS modulator for a direct braking line (between cylinder and calipers) the sensation for the KTM 990 RC R TRACK receives a big upgrade and is also more track-ready in terms of servicing and convenience.

View More Info on KTM Website

Engine
Design	2 cylinder, 4 stroke, DOHC Parallel twin (EURO 5+)
Displacement	947 cm³
Power	135 PS
Torque	105 Nm
Transmission	6-speed
Cooling	Liquid cooled with water/oil heat exchanger
Engine cylinder	Twin cylinder
EMS	Bosch EMS with RBW
Engine oil	Motorex Power Synth SAE 10W-50
Engine stroke	4-Stroke
Drive type	Combustion
Silencer	Stainless steel primary and secondary silencer
Chassis
Front brake disc diameter	320 mm
Front brake disc diameter	12.6 inch
Rear brake disc diameter	240 mm
Rear brake disc diameter	9.45 inch
Front brake	2x radially mounted 4 piston caliper, brake disc
Rear brake	1 piston caliper, brake disc
Chain	520 X-Ring
Frame design	Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
Steering head angle	65.8 °
Rear subframe design	Aluminium, powder-coated
Trail	98.5 mm
Wheelbase	1.481 mm
Suspension
Front suspension	WP APEX 48 Open Cartridge
Rear suspension	WP APEX
Suspension travel (front)	130 mm
Suspension travel (rear)	130 mm
Suspension travel (front)	5.12 inch
Suspension travel (rear)	5.12 inch
Front suspension addition	Compression and rebound (30 click), Preload (±3 Clicks)
Rear suspension addition	Compression High Speed (3 turns) Low Speed (30 Clicks), Rebound (30 Clicks), Preload (10 turns)
Dimensions
Seat height	857 mm
Tank capacity (approx.)	15.7 l
Ground clearance	163 mm
Weight (without fuel)	170 kg
Tank capacity (approx.)	4.15 US gal
Weight fully fueled	181 kg
Wheels	3.5 x 17"; 5.5 x 17"
Wheels	Cast aluminium wheels

View Specs on KTM Website
