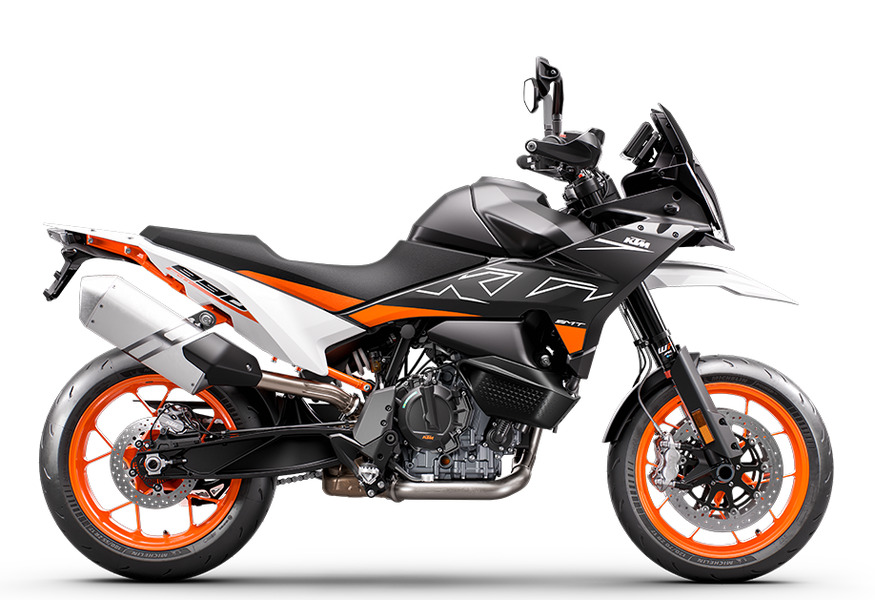

Ktm 2024 KTM 890 SMT 2024The Long-range Supermoto Weapon

DescriptionSpecifications

What do you get when you add a touch of touring to a large serving of unbeatable tarmac performance, and finish with a strong splash of Supermoto legacy? > Read more

Rider aids

KTM rider aids are developed to enhance riding experience by providing more control in different riding scenarios. ABS, MTC, and specially engineered RIDE MODES allow you to get the most out of your machine when barreling down the motorway, or when attacking twisty mountain roads.

MTC (Motorcycle Traction Control)

Making use of the latest generation of KTM MTC, traction is improved by using an advanced 6D Inertial Measurement Unit. This not only regulates and controls any slip at the rear wheel but also prevents uncontrolled lifting of the front wheel. With these two forces combined, the motorcycle is guaranteed the best possible acceleration. With all the data collected from the various sensors, the system detects and controls power wheelies and ensures stability as well as smooth wheel landing and acceleration.

Cornering ABS

Grab a handful of brakes with total confidence thanks to a new 9.3 MP ABS unit. This allows riders to use full braking power mid-corner with the 6D-sensor doing all the hard work. The 6D-sensor works by continuously monitoring and evaluating the current dynamic state of the motorcycle, enhancing safety and stability during braking. Also, this level of ABS technology is unmatched, providing precise and efficient stopping power with the highest level of safety.

Seat Comfort

The single-piece Supermoto-style seat on the KTM 890 SMT was developed to allow uninhibited freedom of movement while providing maximum grip and comfort when carving around mountain passes solo. Want to tour 2-up? No problem. The seat has been designed for long days in the saddle touring with a pillion, too.

Supermoto ABS

So, it makes sense then that any KTM motorcycle bearing the SMT name has a need to deliberately execute slides. SUPERMOTO ABS allows the rider to lock the rear wheel as and when required - a prerequisite for committed Supermoto riding. The ABS function remains active on the front wheel while activated, too.

Wheels and Tires

Michelin PowerGP tires are wrapped around a set of 17" lightweight, light-alloy wheels. This means low levels of unsprung mass, and epic levels of handling and ride dynamics.

Brakes

Slowing the apex hunting KTM 890 SMT down comes courtesy of twin 320 mm brake disks and JJuan 4-piston radially mounted calipers. These are used in conjunction with a J.JUAN axial master cylinder, making for impressive braking control and stopping power. At the rear, a 260 mm brake disk is actuated by a double-piston floating caliper, also supplied by J.JUAN.

Reworked Suspension

The 2023 KTM 890 SMT allows you to set up your ride to your own preferences. Fitted with rebound and compression damping adjusters on the top cap of the fork legs, this makes for quick and easy adjustment for different types of riding usage. Want to attack the mountain pass, then simply dial in the clickers, or if you out for a brisk but steady ride then soften up the setup. On the rear, the shock features a rebound damping adjuster and a hand adjuster for spring preload. The rebound damping adjustability allows the rider to adapt the shock behavior to different riding situations, while the spring preload adjuster can be tailored for luggage, passenger loads or for those full mountain attacks.

Bodywork

Not to be mistaken for anything else on the mountain. The KTM 890 SMT has a double fender design, composed of a high front fender - that takes inspiration from the KTM 450 SMR - and a lower splash guard which is connected to the fork leg protectors. This, along with spoilers and rear side panels that are slightly wider than the seat for improved control and to reduce wear and tear on the seat, and in-mold graphics for further durability, make the KTM 890 SMT ready for anything.

Aerodynamics

A newly designed and aerodynamically optimized short wind deflector has been developed to provide just the right level of wind protection, while still maintaining that signature sporty KTM look.

Upgraded TFT Display

A new state-of-the-art full 5" TFT display keeps you informed with everything you need to know about the machine below you. Featuring improved functionality, each function is illustrated by an infographic of the motorcycle to directly show the user the relevant field of adjustment. An optically bonded mineral glass display ensures optimum scratch and glare resistance. Additionally, an optional Connectivity Unit allows the connection between the KTMconnect app and the TFT via Bluetooth for Turn-by-Turn+ navigation, music, incoming calls, and quick access to KTM roadside assistance.

Ergonomics

With tank spoilers and rear side panels slightly wider than the seat, hitting the mountain pass is easier thanks to improved rider movement. This also helps with reduced wear and tear on the seat, while the slim shape of the fuel tank is optimized for precise handling and control when tearing around tight switchbacks on the hillclimb.

Technology

The 2023 KTM 890 SMT brings unmatched technology to the trail. Boasting an arsenal of rider aids, ride modes, ABS and traction control features - as well as optional smartphone connectivity - it rules the mid-weight Sports Tourer segment. The riding experience can be further enhanced with optional additions like Quickshifter+ and Cruise Control, with the introduction of a Demo Mode, which allows you to test all the KTM technology for the first 1,500km.

Frame

The overall geometry of the KTM 890 SMT was developed for sharp handling, and comfort when attacking the mountain passes- with unchallenged hillclimb capability. Strength was a big consideration in the design, so a tubular Chromoly steel frame is used with the engine acting as a stressed member to reduce weight and overall size. Additionally, the compact frame allows for a long swingarm which improves traction without compromise handling.

Subframe

Featuring a lightweight and solid construction, the subframe is fully loaded for street attack. The motorcycle beneath you needs to be built to last. The steel trellis subframe was developed to be compact, lightweight, and strong enough to carry a full load of luggage as well as a passenger on those long hunting session to find the ultimate mountain roads.

Stability

The 2023 KTM 890 SMT is rock solid at any speed, thanks to a high-end steering damper. Engineered to provide unflappable composure at all times, the steering damper works to keep the front end stable when flicking through tight turns or hauling over mountain passes.

Fuel Tank

In true Supermoto fashion, the fuel tank is purposefully designed to be sleek for optimal rider movement. With an overall fuel capacity of 15,8 liters, more than 300 km of twisty roads await you.

PREMIUM MANUFACTURER’S WARRANTY

This motorcycle comes with a PREMIUM MANUFACTURER'S WARRANTY. Riders enjoy up to 4 years of coverage; ride worry-free and experience the thrill of KTM with added peace of mind. To keep the warranty valid, regular services must be performed according to the service plan at an authorized KTM dealer. More information and details on how to benefit from this offer can be found on the KTM warranty page. Valid for bikes in stock sold from 3.2.2025.

View More Info on KTM Website

Engine
Design	2-cylinder, 4-stroke, parallel twin
Displacement	889 cm³
Torque	100 Nm
Transmission	6-speed
CO2 emissions	107 g/km
Cooling	Liquid cooled
Engine cylinder	Twin cylinder
EMS	Bosch EMS with RBW
Engine oil	Motorex Power Synth SAE 10W-50
Drive type	Combustion
Silencer	Stainless steel primary and secondary silencer
Chassis
Front brake disc diameter	320 mm
Rear brake disc diameter	260 mm
Front brake	2x radially mounted 4 piston caliper
Rear brake	2 piston caliper, brake disc
Chain	520 X-Ring
Frame design	Chromium-Molybdenum-Steel frame using the engine as stressed element, powder coated
Steering head angle	64.21 °
Rear subframe design	Aluminium, powder-coated
Trail	111.6 mm
Wheelbase	1502 mm
Suspension
Front suspension	WP APEX-USD, Ø 43 mm
Rear suspension	WP APEX - Monoshock
Suspension travel (front)	180 mm
Suspension travel (rear)	180 mm
Dimensions
Seat height	860 mm
Tank capacity (approx.)	15.8 l
Ground clearance	227 mm
Weight (without fuel)	194 kg
Wheels	Cast aluminium wheels

View Specs on KTM Website
