Home > Ktm > Current Range > Ktm 2024KTM690SMCR

Ktm 2024KTM690SMCR STREET SLAYER

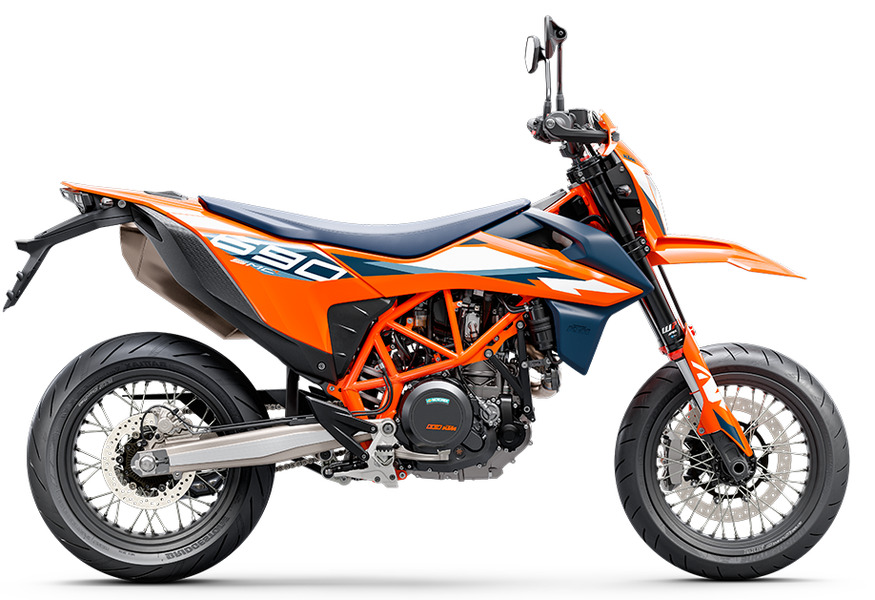

  • Picture of Ktm 2024KTM690SMCR

DescriptionSpecifications
The KTM 690 SMC R raises the bar in the supermotos stakes, thanks in part to a lightweight chassis, a legendary 690 LC4 motor and a sophisticated electronics package. Whether you express your tarmac-sliding talent on mountain roads or on the apexes of your favourite track, you'll be drifting into the future with a maxed-out grin and your veins coursing with adrenaline. Handling is enhanced by the latest fully-adjustable WP APEX suspension, so all you have to worry about is focusing on the road ahead and twisting the throttle to the stoppers.


View More Info on KTM Website

Engine

  • Torque 73.5 Nm
  • Transmission 6-speed
  • Cooling Liquid cooled
  • Power in KW 55 kW
  • Starter Electric starter
  • Stroke 80 mm
  • Bore 105 mm
  • Clutch PASC (TM) slipper clutch, hydraulically actuated
  • CO2 emissions 96 g/km
  • Compression ratio 12.7
  • Displacement 692.7 cm³
  • EMS Keihin EMS with RBW, twin ignition
  • Design 1-cylinder, 4-stroke engine
  • Fuel consumption 4.1 l/100 km
  • Fuel-mixture generation Keihin EFI, 50 mm throttle body
  • Lubrication Forced oil lubrication with 2 oil pumps

Chassis

  • Weight (without fuel) 150 kg
  • Tank capacity (approx.) 13.5 l
  • Wheelbase 1476 mm
  • ABS Bosch 9.1 MP (incl. Cornering-ABS and super moto mode)
  • Front brake disc diameter 320 mm
  • Rear brake disc diameter 240 mm
  • Front brake Brembo four-piston radial fixed calliper, brake disc
  • Rear brake Brembo single-piston floating calliper, brake disc
  • Chain 520 X-Ring
  • Frame design Chrome-moly tubular space frame, powder-coated
  • Front suspension WP APEX 48
  • Ground clearance 237 mm
  • Handlebar Aluminium, tapered Ø 28/22 mm
  • Rear suspension WP APEX with Pro-Lever linkage
  • Seat height 892 mm
  • Silencer Stainless steel primary and secondary silencer
  • Steering head angle 63.6 °
  • Rear subframe design Self-supporting plastic tank
  • Suspension travel (front) 215 mm
  • Suspension travel (rear) 240 mm
  • Wheels Spoked wheels with aluminium tubeless rims
View Specs on KTM Website
